LM93x Programming, Trimming & Testing

During manufacturing the LM931 is programmed and tested using the CSREnder tool, a LM931 jig with the CSR USB-SPI uEnergy adapter and the CSR Reference Endpoint. For now, refer to the CSREnder tool readme in the Bitbucket Git repository for more information. Currently the msvc branch is under development, not the master branch.

Product Hardware Specification – LM951

Goals

The following are the primary goals of the LM951 product hardware design, in order of priority. It’s expected that these will be weighed-up based upon their designated priority and a reasonable balance achieved.

  1. Product must be as small as possible
  2. Product must not sacrifice RF performance
  3. Product must be of sensible layout
  4. Product must be cost-effective
  5. Product must pin-out as much IO from the IC as possible

Specification

Important Documents

  • The design shall follow, where reasonable, the guidelines provided by LM in the document
    3. Reference & Investigations\PCB Design Guidelines for contractors-v18-20150511_1614.pdf
  • The design shall use the template Altium project and stack-up located in
    6. SCH & PCB\PCB0012 CSRB5342 LM951 CHIP ANTENNA.PrjPcb
  • The design shall follow closely the reference provided by CSR in the document
    3. Reference & Investigations\CS-322155-DD-1 CSRB5342 BGA reference design module.pdf
  • The prelim example design document
    3. Reference & Investigations\CS-322707-AN-1 CSRB534x BGA prelim example design.docx‘ and example gerber layout
    3. Reference & Investigations\R13342v2_GERBER Hawkeye BGA example design v2.zip‘ provided by CSR should be considered for advice on likely challenges and good design practises

Changes from Reference

  • The design shall use the SST26WF080BT-104I/NP Quad-SPI USON Flash IC for U3 instead of the reference design, with appropriate adjustments to the application schematic
  • The design shall use IC antenna AT3216-B2R7HAATLF, instead of the reference PCB antenna, with appropriate adjustments to the application schematic
  • The design does not require dedicated test points
  • The design does not require PIO 12 to 30 (except PIO 25, 26 and 27) or AIO 4 to 25, these may be removed from the design to reduce size to meet the design goals
  • Battery charge related and USB IO towards far end of the board (away from antenna)

PCB Specification

  • Number of Layers: 4 (6 may be considered by first feeding back to LM project manager)
  • PCB Thickness: 1.6mm



CSR uEnergy Starter Devleopment Kit + LM931 Bluetooth 4.1 SMART (BLE) Module (NDA only)

Introduction

In order to provide early access for its new LM931 Bluetooth 4.1 SMART Module, LM has developed a daughter-board adapter for the CSR uEnergy Starter Development Kit (uEnergy DK) and pre-soldered the LM931 to the Development Kit. At a later date we will launch an Arduino compatible developer board designed specifically for the LM931.

This document describes how to:

  • Use the uEnergy DK hardware
  • Download and run the CSR uEnergy SDK
  • Load a sample application onto the module

Hardware

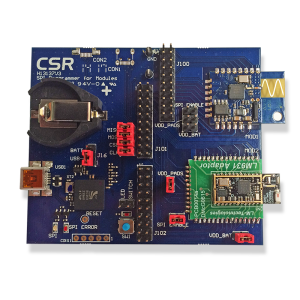

The uEnergy DK has been provided with the LM931 pre-soldered and jumpers pre-configured. Please see the image below for the reference setup.

LM931_CSR_DEV_800x800

I/O Pinout

The LM931 I/O is exposed on headers J101 and J102. I/O assignments are as depicted below.

image2015-6-10 16-25-9

Plugging in the dev board

Simply attach the micro USB to your PC or Laptop after installing CSR’s SDK (see below). When you run an application from uEnergy studio it will automatically detect and use the device. If it can not find the dev board check device manager for the CSR USB<>SPI Converter under USB Serial Bus Controllers.

image2015-7-15 9-5-27

Software

The LM931 is programmed using CSR’s uEnergy SDK, please obtain and install the latest version with default settings from the following link: https://drive.google.com/file/d/0B256wTxVOD-DcDMxbldjUzZ3Nnc/view?usp=sharing

The uEnergy SDK provides a full IDE environment and C API for programming and debugging the LM931, offering incredible power and flexibility, however, at the same time this can be daunting for new users. To help ease the process, CSR provide 34 sample application projects within the InstallLocation\apps folder, many of which implement the standard BLE SIG profiles. Documentation for these sample applications, general use and technical details can be found at InstallLocation\doc\support\index.html (Or click Help->Home in the IDE). Comprehensive C API Documentation is located at InstallLocation\doc\reference\index.html. These can also be accessed from within the uEnergy SDK IDE.

We STRONGLY recommend reviewing the documentation at InstallLocation\doc\support\index.html, which should also have been installed as a shortcut on the desktop, to get the most out of the development kit software.

Compiling and Debugging a Sample Application

  1. Open CSR µEnergy SDK 2.4.5.13 (xIDE).exe

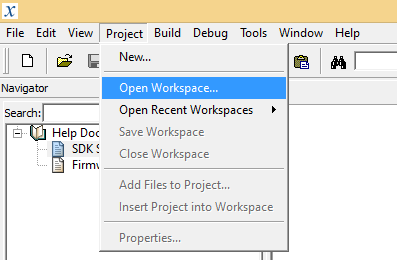

  2. Navigate to Project->Open Workspace… within the top menu

image2015-6-10 13-49-54

3. Navigate to and open the sample project C:\CSR_uEnergy_SDK-2.4.5.13\apps\weight_scale\weight_scale.xiw

image2015-6-10 13-53-5

4. From the Navigator bar on the left, open file weight_scale_csr101x_A05.keyr, locate the line // (0002) – Crystal frequency trim and modify the trim frequency to the number provided in the e-mail that accompanied this document

NOTE:The .keyr files contain read-only configuration options and default values that are embedded within the application. Every individual adapter has a unique Crystal frequency trim value; normally LM inserts this when the customer application is loaded (flashed) during manufacturing, however, when using the LM931 for development, the trim value is overridden each time a new application is loaded and so it’s important to ensure the value in the application matches the individual module’s value, which should have been provided by LM over e-mail.

image2015-6-11 15-40-4

5. If you also wish to use maximum available TX power, please also add &TX_POWER_LEVEL = 7, as depicted below

image2015-6-11 15-41-49

6. Press F7 to build the active project or navigate to Build->Build Active Project within the top menu

NOTE: The weight_scale project is already configured correctly for the LM931 and includes support for over-the-air updates as well. These project settings may be used as a helpful reference later-on.

Three images will have been generated in the folder C:\CSR_uEnergy_SDK-2.4.5.13\apps\weight_scale\depend_Release_CSR101x_A05:
a. bootloader.img – Bootloader only (no default application – application must be loaded over-the-air)
b. weight_scale.img – Bootloader + Application image (this is the full image that will be flashed to the device)
c. weight_scale_update.img – Application image (this is the application-only image that is used when loading the application over-the-air)

7. To download the image to EEPROM and debug, either press F5 or navigate to Debug->Run within the top menu, with the hardware connected over USB.

You will have access to an array of standard debugging capabilities, including:

  • Code and data break points
  • Pause/play/stop/restart
  • Disassembly view
  • Register view
  • Memory view
  • Variable watch view
  • Callstack view
  • variable/static/const views

Additionally, it’s possible to send debug information over the UART to a UART-to-USB converter and view trace information from a Serial Terminal

8. The above process can be approximately repeated for any of the other sample applications. Please be aware not all applications include support for over-the-air updates, documentation to add this is provided, however. For your own application, you can either copy and modify an existing project or start a new project, using the example applications, help and API documentation to assist.



Crystal Trim Values – LM931

  1. 13 (-1.5dBm best, -5.79dBm aligned)
  2. 6 (-2.5dBm best, -7dBm aligned)
  3. f
  4. 5 (-1.5dBm best, -9dBm aligned)
  5. f



RF Certification – LM910

Many countries require products to be RF certified, as a module, the LM910-0630 may require additional certifications beyond those provided by LM Technologies, this may be the case for the following reasons:

  • LM Technologies does not currently hold a certification for its module/adapter in the specified country and that country does not recognise any of the existing certifications.
  • Please see LM Product Certifications for a list of all current certifications that LM Technologies holds for its modules and adapters.
  • Some countries do not support module-level certifications, in this case, full product certification must be performed.
  • The LM910-0630 has no metal RF shield. In this case certification standards such as FCC only support certification as an entire product or ‘Limited Certification’ where the module must be demonstrated to work in a sub-set of specified products.

To perform certifications, depending on the type of testing performed and the capabilities of the test hardware, the LM910-0630 can be placed into various test modes to aid in this process.

Device Under Test (DUT) Mode

Device Under Test Mode allows a Bluetooth-aware test unit to issue synchronised test commands remotely over a wireless link. This test mode is useful for Bluetooth SIG compliance testing and other RF testing where hardware capable of issuing Bluetooth DUT commands wirelessly.

To place the device into DUT mode, please take the following steps:

1/ Connect the device to a PC or microcontroller capable of issuing Bluetooth HCI commands and provide power.
2/ Follow the Firmware Patch Guide to provide PatchRAM optimisations of the RF parameters required for RF testing.
3/ Issue the following HCI command to reset the device:

Opcode: 0xC03 Length: 0x00 (Reset)

4/ Issue the following HCI command to enable device discovery:

Opcode: 0xC1A Length: 0x01 Parameters: 0x03 (Write_Scan_Enable: Inquiry and Page Scan Enabled)

5/ Issue the following HCI command to enable device role-switching:

Opcode: 0xC05 Length: 0x03 Parameters: 0x02 0x00 0x03 (Set_Event_Filter: (Filter_Type: Connection Setup (Connection_Setup_Filter_Condition_Type: Allow Connections from all devices, Auto_Accept_Flag: Do Auto accept the connection with role switch enabled))

6/ Issue the following HCI command to enter Device Under Test (DUT) Mode:

Opcode: 0x1803 Length: 0x00 (Enable_Device_Under_Test_Mode)

TX Test Mode

TX Test Mode allows the device to transmit fixed or pseudo-random packets on either a single-frequency, fixed-pattern or 79-channel Bluetooth frequency-hopping mode.

To place the device into TX Test mode, please take the following steps:

1/ Connect the device to a PC or microcontroller capable of issuing Bluetooth HCI commands and provide power.
2/ Follow the Firmware Patch Guide to provide PatchRAM optimisations of the RF parameters required for RF testing.
3/ Issue the following HCI command to reset the device:

Opcode: 0xC03 Length: 0x00 (Reset)

4/ Issue the following HCI command to enable TX Test mode:

Opcode: 0xFC51 Length: 0x10 Parameters:

Local_Device_BD_ADDR: 0x00 0x02 0x72 0xC9 0x14 0x9D (Example Local Device Bluetooth Address)

Hopping_Mode: 0x00 (79 Channel) / 0x01 (Single Frequency) / 0x02 (Fixed Pattern)

(IF Hopping_Mode == 0x01) Frequency: 0x00 to 0x4E (Channel 1 2402MHz to 79 2480MHz)

Modulation_Type: 0x00 (0x00 8-bit pattern) / 0x01 (0xFF 8-bit pattern) / 0x02 (0xAA 8-bit pattern) / 0x03 (0xF0 8-bit pattern) / 0x04 (PRBS9 pattern)

Logical_Channel: 0x00 (ACL EDR) / 0x01 (ACL Basic) / 0x02 (eSCO EDR) / 0x03 (eSCO Basic) / 0x04 (SCO Basic)

BB_Packet_Type: 0x00 (NULL) / 0x01 (POLL) / 0x02 (FHS) / 0x03 (DM1) / 0X04 (DH1/2-DH1) / 0X05 (HV1) / 0X06 (HV2/2-EV3) / 0X07 (HV3/EV3/3-EV3) / 0X08 (AUX1/PS) / 0X09 (DM3/2-DH3) / 0X0A (EV4/2-EV5) / 0X0B (EV5/3-EV5) / 0X0C (DM5 / 2-DH5) / 0X0D (DH5/3-DH5)

BB_Packet_Length: 0x00 (Any Length up to allowed Packet Type Length)

Tx_Power_Level: 0x00 (0dBm) / 0x01 (-4dBm) / 0x02 (-8dBm) / 0x03 (-12dBm) / 0x04 (-16dBm) / 0x05 (-20dBm) / 0x06 (-24dBm) / 0x07 (-28dBm) / 0x09 (Specify Power Table Index - Use this for 10dBm)

(IF Tx_Power_Level == 0x09) Transmit_Power_Table_Index: 0x00 (10dBm)

RX Test Mode

RX Test Mode allows the device to receive only fixed or pseudo-random packets on either a single-frequency or a fixed-pattern.

To place the device into RX Test mode, please take the following steps:

1/ Connect the device to a PC or microcontroller capable of issuing Bluetooth HCI commands and provide power.
2/ Follow the Firmware Patch Guide to provide PatchRAM optimisations of the RF parameters required for RF testing.
3/ Issue the following HCI command to reset the device:

Opcode: 0xC03 Length: 0x00 (Reset)

4/ Issue the following HCI command to enable RX Test mode:

Opcode: 0xFC52 Length: 0x0E Parameters:

Remote_Device_BD_ADDR: 0x00 0x02 0x72 0xC9 0x14 0x9D (Example Remote Device Bluetooth Address)

Report_Period: 0xFA to 0x7D0 (Report Period in Milliseconds from 250ms to 2000ms)

Frequency: 0x00 to 0x4E or 0xF0 (Channel 1 2402MHz to 79 2480MHz or Fixed Pattern)

Modulation_Type: 0x00 (0x00 8-bit pattern) / 0x01 (0xFF 8-bit pattern) / 0x02 (0xAA 8-bit pattern) / 0x03 (0xF0 8-bit pattern) / 0x04 (PRBS9 pattern)

Logical_Channel: 0x00 (ACL EDR) / 0x01 (ACL Basic) / 0x02 (eSCO EDR) / 0x03 (eSCO Basic) / 0x04 (SCO Basic)

BB_Packet_Type: 0x00 (NULL) / 0x01 (POLL) / 0x02 (FHS) / 0x03 (DM1) / 0X04 (DH1/2-DH1) / 0X05 (HV1) / 0X06 (HV2/2-EV3) / 0X07 (HV3/EV3/3-EV3) / 0X08 (AUX1/PS) / 0X09 (DM3/2-DH3) / 0X0A (EV4/2-EV5) / 0X0B (EV5/3-EV5) / 0X0C (DM5 / 2-DH5) / 0X0D (DH5/3-DH5)

BB_Packet_Length: 0x00 (Any Length up to allowed Packet Type Length)



Firmware Patch Guide – LM910

The LM910-0630 features at its core a Broadcom BCM20702 Bluetooth 4.0 HCI USB IC.

The BCM20702 is shipped from the factory with a generic firmware that will allow for communication between the IC and the host via HCI commands, however, this firmware does not include design-specific RF optimisations, the latest bug fixes or additional functionality. It’s therefore important for the sake of RF testing and production that the host load onto the module a ‘PatchRAM’ firmware file.

  • It’s important to note that this patch is applied in volatile RAM memory and as such, must be re-applied each time the device is power-cycled. Needless to say the below routine should be integrated into the host solution that is to be deployed on the end-product.

This guide assumes that the user knows how and has the capability to issue a HCI command and to read a HCI event on their platform.

Overview

  • Open HCI command socket over USB or otherwise.
  • Issue the HCI reset command (OGF 0x03, OCF 0x003 or 0x0C03 together), wait for the command complete event and check that the return status code is zero.
  • Issue the vendor specific HCI command ‘Download_Minidriver’ (OGF 0x3F, OCF 0x02E or 0xFC2E together) and wait for the command complete event.
  • Wait for 50ms for the device to enter Download Mode.
  • Parse each HCI command from the HCD firmware file and send it over the HCI command socket, checking that each command is run successfully.
  • Wait 250ms for flashing to complete.

Issuing commands & command complete event

In all cases, the user should wait for the corresponding Command_Complete event when issuing a command and check the command’s return status parameter for errors.

On some platforms, there may be a convenience function which waits for the Command_Complete event, as a wait is often required with most HCI commands.

HCD file format

The HCD file consists of a set of HCI commands in the following format:

OpcodeUnsigned 16-bit integer in little endian byte orderBluetooth HCI command identifier
Parameter lengthUnsigned 8-bit integerLength of the parameter data for this command in bytes
Parameter dataByte arrayZero or more bytes as specified by parameter length

All the data is tightly packed, so each field begins directly after another as does each command.

HCD file

For the A0 revision

BCM20702A0-0a5c-21e8.hcd

For the B0 revision:

BCM20702B0-0a5c-22be.hcd (named LM_BCM20702B0_002.001.014.0592.0899_Generic_USB_Class1_20MHz.hcd in LM’s vendor’s folder)

References

BlueZ; the Bluetooth stack used by the Linux kernel contains a working example of the patchram procedure:
https://git.kernel.org/cgit/linux/kernel/git/torvalds/linux.git/tree/drivers/bluetooth/btusb.c

There is also a patch ram utility for Linux/Android which can be found at the following link:
https://code.google.com/p/broadcom-bluetooth/source/browse/



Reflow – LM910

The LM910-0630 module is produced using standard-temperature lead-free solder. For this reason we recommend the use of a low-temperature solder (< ~217°C) to avoid causing a second reflow of the module components, increasing the likelihood of a higher yield.

We understand that some applications and manufacturer limitations prevent the use of a low-temperature solder, in this instance, please follow the below guidelines to form your own custom reflow profile:

Reference Reflow Profile (standard-temperature lead-free)

LM506_0518_reference_temperature_reflow_chart

  • If the host PCBA is double-sided and passes through reflow twice, reflow the module on the final pass only.
  • Do not exceed a reflow temperature of 250°C and refer to your solder paste vendor’s guidelines.
  • Temperature Ramp-up and Ramp-down times should be within the range of 1 to 4°C/s, attempt to not exceed 3°C/s.
  • This chart is for reference only, results will vary from manufacturer to manufacturer and machine to machine.

Customising the Reference Reflow Profile

The reflow profile shown in the above section is for reference only. It is expected that refinements and customisations to this profile will be needed during trial sampling to achieve an acceptable yield.

Moisture Sensitivity and Pre-Baking

The LM910-0630 is rated at moisture sensitivity level 3 (MSL-3). It is recommended to pre-bake the module before SMT placement.

Please see the following IPC/JEDEC J-STD-033B.1 guidelines, which offer recommended bake times dependant on the time the module packaging has been unsealed for and the baking temperature that will be applied:

Bake @ 125°CBake @ 90°CBake @ 40°C
Exceeding
Floor Life
By > 72 hours
Exceeding
Floor Life
By <= 72 hours
Exceeding
Floor Life
By > 72 hours
Exceeding
Floor Life
By <= 72 hours
Exceeding
Floor Life
By > 72 hours
Exceeding
Floor Life
By <= 72 hours
9 hours7 hours33 hours23 hours13 days9 days



SMD/SMT Placement – LM910

The LM910-0630 is a single-sided USB module suitable for SMT/SMD placement, based around the design of the LM506 USB Nano Adapter.

Our customers often appreciate the simplistic development pipeline of moving from the LM506 Adapter for initial work to the LM910 Module for production, however, there are some additional considerations that must be made when dealing with surface-mount devices.

Recommended Placement Solution

TBC

Mechanical Specification

The below to-scale mechanical specification of the LM910-0630 can be used to aid in PCB mounting and positioning.

LM910_no_antenna



Using Broadcom BlueTool – LM506

Broadcom BlueTool is a testing and diagnostic program for Windows PCs that allows a friendly point-and-click method of issuing firmware updates and Bluetooth HCI commands to any Broadcom-based Bluetooth HCI module or adapter. This is also a facility for scripted automation via PERL for production testing.

Installation Notes

Please follow the on-screen instructions. Unless the intention is to provide scripted automation for production or repeated test purposes, please do not select the default installation type, instead disable the PERL module to simplify the set-up of BlueTool.

  • We have noticed some issues when using this software on a 64-bit OS with USB-based Bluetooth devices. In this instance, we recommend the use of BlueTool on a 32-bit OS only.

Issuing a HCI Command

HCI commands are used by a Bluetooth stack to communicate with a Bluetooth Radio Device, as such, HCI commands in their raw form can be difficult to read and understand from a human perspective. BlueTool allows you to issue these commands by double-clicking friendly names and by using windows forms as a simple way to enter parameter data, via drop-down lists, check boxes etc., allowing the user to take direct control of a Bluetooth Radio’s behaviour.

To issue HCI commands via BlueTool, please follow the steps outlined below:

1/ Open the HCI Control Window from the Transport drop-down menu.

LM506_using_bluetool_1

2/ Select the location of the Bluetooth Device on the PC, for PCs with a single USB-based device, this is usually ‘usb0’.
If this is not the case, please refer to the information provided by the Windows Device Manager.

LM506_using_bluetool_2

3/ Check the ‘HCI Protocol Active’ box. If a tick appears and items in the list turn from grey to black, then a HCI connection was successfully established. If not, please check the adapter’s connection and configuration details and try again.

LM506_using_bluetool_3

4/ Each name in the list that you are now presented with represents a Bluetooth HCI Command, simply double-click a command of your choice, fill in any parameters and click ‘OK’ to issue the command.
Commands are categorised by the drop-down list in the top-right corner of the window, with the exception of ‘0: Vendor Specific Commands’, each category and command directly relates to a command published in the Bluetooth SIG adopted specification.

LM506_using_bluetool_4

Downloading Firmware

Firmware files issued by LM Technologies for its Broadcom-based Bluetooth devices are typically in ‘*.HCD’ format, with the exception of production Windows drivers, which are in the ‘*.HEX’ format. HCD files contain many lines of HCI commands in raw byte format. This allows for the file to not only contain the firmware data, but also the instructions for configuring the device and loading the firmware, allowing simple integration into a Bluetooth Stack or driver.

To download a HCD firmware file via BlueTool, please follow the above steps in ‘Issuing a HCI Command’.

1/ To ensure the device is in the correct state, issue the command ‘7.3: Reset’, followed by the command ‘0: Download_Minidriver’.

2/ Open the Download Firmware/Config Window from the Transport drop-down menu.

LM506_using_bluetool_5

3/ Configure the window as pictured below, adjusting ‘Device configuration’ according to the Broadcom IC type and selecting the appropriate HCD file in the ‘Download Configuration Record’ box.

LM506_using_bluetool_6

4/ Click ‘Execute’ and observe for errors.



RF Certification – LM506

Many countries require products to be RF certified, as a module, the LM506-0518 may require additional certifications beyond those provided by LM Technologies, this may be the case for the following reasons:

  • LM Technologies does not currently hold a certification for its module/adapter in the specified country and that country does not recognise any of the existing certifications.
  • Please see LM Product Certifications for a list of all current certifications that LM Technologies holds for its modules and adapters.
  • Some countries do not support module-level certifications, in this case, full product certification must be performed.
  • The LM506-0518 has no metal RF shield.In this case certification standards such as FCC only support certification as an entire product or ‘Limited Certification’ where the module must be demonstrated to work in a sub-set of specified products.

To perform certifications, depending on the type of testing performed and the capabilities of the test hardware, the LM506-0518 can be placed into various test modes to aid in this process.

Device Under Test (DUT) Mode

Device Under Test Mode allows a Bluetooth-aware test unit to issue synchronised test commands remotely over a wireless link. This test mode is useful for Bluetooth SIG compliance testing and other RF testing where hardware capable of issuing Bluetooth DUT commands wirelessly.

To place the device into DUT mode, please take the following steps:

1/ Connect the device to a PC or microcontroller capable of issuing Bluetooth HCI commands and provide power.
2/ Follow the Firmware Patch Guide to provide PatchRAM optimisations of the RF parameters required for RF testing.
3/ Issue the following HCI command to reset the device:

Opcode: 0xC03 Length: 0x00 (Reset)

4/ Issue the following HCI command to enable device discovery:

Opcode: 0xC1A Length: 0x01 Parameters: 0x03 (Write_Scan_Enable: Inquiry and Page Scan Enabled)

5/ Issue the following HCI command to enable device role-switching:

Opcode: 0xC05 Length: 0x03 Parameters: 0x02 0x00 0x03 (Set_Event_Filter: (Filter_Type: Connection Setup (Connection_Setup_Filter_Condition_Type: Allow Connections from all devices, Auto_Accept_Flag: Do Auto accept the connection with role switch enabled))

6/ Issue the following HCI command to enter Device Under Test (DUT) Mode:

Opcode: 0x1803 Length: 0x00 (Enable_Device_Under_Test_Mode)

TX Test Mode

TX Test Mode allows the device to transmit fixed or pseudo-random packets on either a single-frequency, fixed-pattern or 79-channel Bluetooth frequency-hopping mode.

To place the device into TX Test mode, please take the following steps:

1/ Connect the device to a PC or microcontroller capable of issuing Bluetooth HCI commands and provide power.
2/ Follow the Firmware Patch Guide to provide PatchRAM optimisations of the RF parameters required for RF testing.
3/ Issue the following HCI command to reset the device:

Opcode: 0xC03 Length: 0x00 (Reset)

4/ Issue the following HCI command to enable TX Test mode:

Opcode: 0xFC51 Length: 0x10 Parameters:

Local_Device_BD_ADDR: 0x00 0x02 0x72 0xC9 0x14 0x9D (Example Local Device Bluetooth Address)

Hopping_Mode: 0x00 (79 Channel) / 0x01 (Single Frequency) / 0x02 (Fixed Pattern)

(IF Hopping_Mode == 0x01) Frequency: 0x00 to 0x4E (Channel 1 2402MHz to 79 2480MHz)

Modulation_Type: 0x00 (0x00 8-bit pattern) / 0x01 (0xFF 8-bit pattern) / 0x02 (0xAA 8-bit pattern) / 0x03 (0xF0 8-bit pattern) / 0x04 (PRBS9 pattern)

Logical_Channel: 0x00 (ACL EDR) / 0x01 (ACL Basic) / 0x02 (eSCO EDR) / 0x03 (eSCO Basic) / 0x04 (SCO Basic)

BB_Packet_Type: 0x00 (NULL) / 0x01 (POLL) / 0x02 (FHS) / 0x03 (DM1) / 0X04 (DH1/2-DH1) / 0X05 (HV1) / 0X06 (HV2/2-EV3) / 0X07 (HV3/EV3/3-EV3) / 0X08 (AUX1/PS) / 0X09 (DM3/2-DH3) / 0X0A (EV4/2-EV5) / 0X0B (EV5/3-EV5) / 0X0C (DM5 / 2-DH5) / 0X0D (DH5/3-DH5)

BB_Packet_Length: 0x00 (Any Length up to allowed Packet Type Length)

Tx_Power_Level: 0x00 (0dBm) / 0x01 (-4dBm) / 0x02 (-8dBm) / 0x03 (-12dBm) / 0x04 (-16dBm) / 0x05 (-20dBm) / 0x06 (-24dBm) / 0x07 (-28dBm) / 0x09 (Specify Power Table Index - Use this for 10dBm)

(IF Tx_Power_Level == 0x09) Transmit_Power_Table_Index: 0x00 (10dBm)

RX Test Mode

RX Test Mode allows the device to receive only fixed or pseudo-random packets on either a single-frequency or a fixed-pattern.

To place the device into RX Test mode, please take the following steps:

1/ Connect the device to a PC or microcontroller capable of issuing Bluetooth HCI commands and provide power.
2/ Follow the Firmware Patch Guide to provide PatchRAM optimisations of the RF parameters required for RF testing.
3/ Issue the following HCI command to reset the device:

Opcode: 0xC03 Length: 0x00 (Reset)

4/ Issue the following HCI command to enable RX Test mode:

Opcode: 0xFC52 Length: 0x0E Parameters:

Remote_Device_BD_ADDR: 0x00 0x02 0x72 0xC9 0x14 0x9D (Example Remote Device Bluetooth Address)

Report_Period: 0xFA to 0x7D0 (Report Period in Milliseconds from 250ms to 2000ms)

Frequency: 0x00 to 0x4E or 0xF0 (Channel 1 2402MHz to 79 2480MHz or Fixed Pattern)

Modulation_Type: 0x00 (0x00 8-bit pattern) / 0x01 (0xFF 8-bit pattern) / 0x02 (0xAA 8-bit pattern) / 0x03 (0xF0 8-bit pattern) / 0x04 (PRBS9 pattern)

Logical_Channel: 0x00 (ACL EDR) / 0x01 (ACL Basic) / 0x02 (eSCO EDR) / 0x03 (eSCO Basic) / 0x04 (SCO Basic)

BB_Packet_Type: 0x00 (NULL) / 0x01 (POLL) / 0x02 (FHS) / 0x03 (DM1) / 0X04 (DH1/2-DH1) / 0X05 (HV1) / 0X06 (HV2/2-EV3) / 0X07 (HV3/EV3/3-EV3) / 0X08 (AUX1/PS) / 0X09 (DM3/2-DH3) / 0X0A (EV4/2-EV5) / 0X0B (EV5/3-EV5) / 0X0C (DM5 / 2-DH5) / 0X0D (DH5/3-DH5)

BB_Packet_Length: 0x00 (Any Length up to allowed Packet Type Length)



Firmware Patch Guide – LM506

The LM506-0518 features at its core a Broadcom BCM20702 Bluetooth 4.0 HCI USB IC.

The BCM20702 is shipped from the factory with a generic firmware that will allow for communication between the IC and the host via HCI commands, however, this firmware does not include design-specific RF optimisations, the latest bug fixes or additional functionality. It’s therefore important for the sake of RF testing and production that the host load on to the module a ‘PatchRAM’ firmware file.

  • It’s important to note that this patch is applied in volatile RAM memory and as such, must be re-applied each time the device is power-cycled. Needless to say the below routine should be integrated into the host solution that is to be deployed on the end-product.

This guide assumes that the user knows how and has the capability to issue a HCI command and to read a HCI event on their platform.

Overview

  • Open HCI command socket over USB or otherwise.
  • Issue the HCI reset command (OGF 0x03, OCF 0x003 or 0x0C03 together), wait for the command complete event and check that the return status code is zero.
  • Issue the vendor specific HCI command ‘Download_Minidriver’ (OGF 0x3F, OCF 0x02E or 0xFC2E together) and wait for the command complete event.
  • Wait for 50ms for the device to enter Download Mode.
  • Parse each HCI command from the HCD firmware file and send it over the HCI command socket, checking that each command is run successfully.
  • Wait 250ms for flashing to complete.

Issuing commands & command complete event

In all cases, the user should wait for the corresponding Command_Complete event when issuing a command and check the command’s return status parameter for errors.

On some platforms, there may be a convenience function which waits for the Command_Complete event, as a wait is often required with most HCI commands.

HCD file format

The HCD file consists of a set of HCI commands in the following format:

OpcodeUnsigned 16-bit integer in little endian byte orderBluetooth HCI command identifier
Parameter lengthUnsigned 8-bit integerLength of the parameter data for this command in bytes
Parameter dataByte arrayZero or more bytes as specified by parameter length

All the data is tightly packed, so each field begins directly after another as does each command.

HCD file

BCM20702A0-0a5c-21e8.hcd

References

BlueZ; the Bluetooth stack used by the Linux kernel contains a working example of the patchram procedure:
https://git.kernel.org/cgit/linux/kernel/git/torvalds/linux.git/tree/drivers/bluetooth/btusb.c

There is also a patch ram utility for Linux/Android which can be found at the following link:
https://code.google.com/p/broadcom-bluetooth/source/browse/



Reflow – LM506

The LM506-0518 module is produced using standard temperature lead-free solder. For this reason, we recommend the use of a low-temperature solder (< ~217°C) to avoid causing a second reflow of the module components, increasing the likelihood of a higher yield.

We understand that some applications and manufacturer limitations prevent the use of a low-temperature solder, in this instance, please follow the below guidelines to form your own custom reflow profile:

Reference Reflow Profile (standard-temperature lead-free)

LM506_0518_reference_temperature_reflow_chart

  • If the host PCBA is double-sided and passes through reflow twice, reflow the module on the final pass only.
  • Do not exceed a reflow temperature of 250°C and refer to your solder paste vendor’s guidelines.
  • Temperature Ramp-up and Ramp-down times should be within the range of 1 to 4°C/s, attempt to not exceed 3°C/s.
  • This chart is for reference only, results will vary from manufacturer to manufacturer and machine to machine.

Customising the Reference Reflow Profile

The reflow profile shown in the above section is for reference only. It is expected that refinements and customisations to this profile will be needed during trial sampling to achieve an acceptable yield.

Moisture Sensitivity and Pre-Baking

The LM506-0518 is rated at moisture sensitivity level 3 (MSL-3). It is recommended to pre-bake the module before SMT placement.

Please see the following IPC/JEDEC J-STD-033B.1 guidelines, which offer recommended bake times dependant on the time the module packaging has been unsealed for and the baking temperature that will be applied:

Bake @ 125°CBake @ 90°CBake @ 40°C
Exceeding
Floor Life
By > 72 hours
Exceeding
Floor Life
By <= 72 hours
Exceeding
Floor Life
By > 72 hours
Exceeding
Floor Life
By <= 72 hours
Exceeding
Floor Life
By > 72 hours
Exceeding
Floor Life
By <= 72 hours
9 hours7 hours33 hours23 hours13 days9 days



SMD/SMT Placement – LM506

The LM506-0518 is a double-sided USB module that finds its design origins as a PCBA suitable for fitting into an adapter housing.

Despite this non-SMT origin, many of our customers find the cost savings of combined adapter and modules sales, paired with the simplistic development pipeline of moving from the LM506 Adapter for initial work to the LM506 Module for production a worthwhile prospect. This has driven LM to work with its customers to find effective ways to treat the LM506-0518 as a surface-mount-device for cost-effective automated placement. Some of these solutions are detailed below.

Recommended Placement Solution

Through a process of trial-and-error in mass-production, LM has identified with its clients, the following placement solution as one that provides good yield:

LM506_smd_1 LM506_smd_2

  • The host PCBA features a cut-out that allows for bottom-side components to avoid interaction during placement and for minimal antenna interference.
  • The cut-out features a small resting area for the antenna end of the module to add stability during the placement process.
  • The cut-out is sized and placed to minimise impact on the antenna and to allow model and production date details to be clearly visible.
  • Copper tracks are run along the host PCBA (highlighted in pink) from the edge of the module all the way to the cut-out, at which point they meet plated half-vias.
  • The plated half-vias allow for superior solder strength and offer a route for additional solder to flow, reducing the likelihood of uneven placement.

Mechanical Specification

The below to-scale mechanical specification of the LM506-0518 can be used to aid in PCB mounting and positioning. Also included are maximum height dimensions and tolerances.

LM506_smd_3



Factory Guide – LM505

Firmware Flashing

Testing

Install

Firmware Flashing

Testing

  • Use the Windows Vista / Windows 7 PC.
  • Connect only one port of the LM505 Test Jig to the PC via USB.
  • Connect the LM048 Test Adapter via USB and RS232.
  • Install LM151_Test_Tool_Setupv1.4.exe

Production Run Setup

Firmware Flashing

1/ Open the LM505_Flash folder on the Desktop.
2/ Edit BTWKeys.TXT and place one Bluetooth address on each line, followed by 00000000 00000000 00000000 00000000, for example:

AABBCCDDEEF0 00000000 00000000 00000000 00000000
AABBCCDDEEF1 00000000 00000000 00000000 00000000
AABBCCDDEEF2 00000000 00000000 00000000 00000000
  • Once a Bluetooth Address has been used (flashed onto the module), the program will append the line with the * symbol.

Production Run

Firmware Flashing

1/ Open the LM505_Flash folder on the Desktop.
2/ Run the batch file 2046.bat:

LM505_factory_guide_1

3/ Place an un-flashed LM505 module into the LM505 Test Jig and provide power using the metallic flip switch:

  • If there is a request for drivers, please install the driver located in LM505_Flash\drivers

LM505_factory_guide_2

4/ Remove power using the metallic flip switch, remove the module and repeat step 3 until production is complete.

  • If any error occurs or the flashing process freezes, please close the cmd.exe program, remove power using the metallic flip switch and begin again from step 2.

Testing

1/ Run LM151_Test_Tool.exe
2/ Enter the name of the person performing the testing and the Factory Bay Name/Number followed by OK (for traceability):

LM505_factory_guide_3

3/ Place a flashed LM505 module into the LM505 Test Jig and provide power using the metallic flip switch:
The address and name of the device will appear, along with confirmation that it is successfully loaded into LM151.

LM505_factory_guide_4

4/ Select Search Devices to begin discovery of the LM048 Test Adapter, a list of Bluetooth devices will be displayed:

LM505_factory_guide_5

5/ Double-Click on the Bluetooth Address representing the LM048 Test Adapter.

  • If a request to connect or pair with the LM048 Test Adapter appears, accept it.

LM505_factory_guide_6

6/Confirm that the test Passed, remove power using the metallic flip and remove the module. Repeat step 3 until production is complete.

7/ After production, e-mail the new test results stored in the installation directory of LM151 to: ahmad@lm-technologies.com

LM505_factory_guide_7

For more information and troubleshooting, please refer to the guide

LM505-0513_Test_Procedurev1.1.pdf
